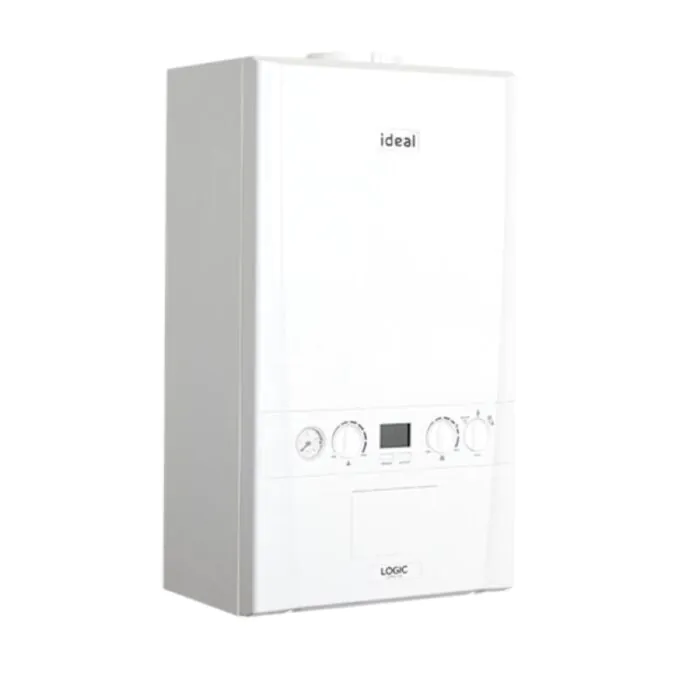

Ideal Logic 24he Combi Boiler & Flue

Product Code
46IDE009
  1. Please note that all Gas Boilers must only be installed by rgii.ie registered & approved fitters. Flu Exhaust Kits are available for your Boiler and are purchased separately.

This product is out of stock and not available to order right now.

Recently Viewed

Ideal Logic 24He Combi Boiler & Flue


Ideal Logic 30He Combi Boiler & Flue


LOGIC COMBI IE


7Yr Warranty


Our Logic Combi IE range is one of the only boilers to receive Quiet Mark accreditation for its quiet operation. The Logic range was awarded the Queen’s Award for Enterprise 2013 and Good Housekeeping Reader Recommended Status in 2013, 2017 and 2018.


FEATURES & BENEFITS


  • 7 year parts and labour warranty*
  • Boiler frost protection
  • Easy to see pressure gauge
  • Low lift weight (starting from 29.2kg)
  • Easy to use fully backlit LCD display
  • Wide range of additional flueing options
  • Universal condensate connection
  • LPG conversion kit available for 24IE and 30IE boilers
  • Preformed copper tails and pre-wired mains lead
  • Compatible with a range of additional controls
 C24IEC30IEC35IE
Size
Height (mm)700700700
Width (mm)395395395
Depth (mm)278278278
Weight (packaged) kg33.733.733.7
Max installation weight kg28.92929.1
Performance
CH output (kW) min/max @ 70°C4.8 - 24.26.1 - 24.27.1 - 24.2
CH output (kW) min/max @ 40°C5.1 - 25.66.4 - 25.67.5 - 25.6
DHW output (kW) max24.230.335.3
DHW flow rating I/min. 35°C rise9.912.414.5
SEAI HARP (2005) %91.191.191.1
NOx classificationCLASS 6CLASS 6CLASS 6
Convertable to LPGYesYesNo
Flues
Max horizontal flue9m8m6m
Max vertical flue7.5m7.5m7.5m
Powered vertical flue22m22m22m
ERP Efficiencies
Condensing boilerYesYesYes
Seasonal space heating efficiency classAAA
Related heat output Kw242424
Seasonal space heating energy efficiency ŋs %949494
Sound power level, indoors Lwa dB484644
Water heating energy efficiency classAAA
