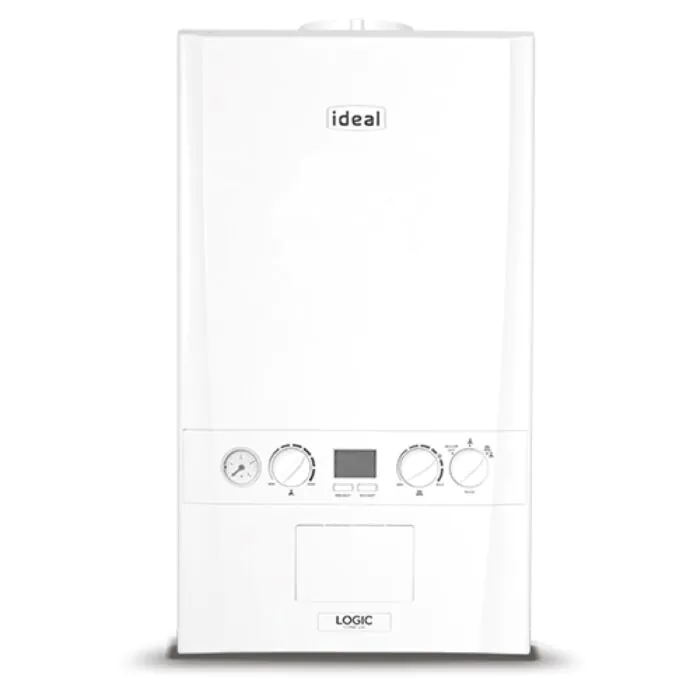

Ideal Logic 30he Combi Boiler & Flue

Product Code
46P1256844M
  1. Please note that all Gas Boilers must only be installed by rgii.ie registered & approved fitters. Flu Exhaust Kits are available for your Boiler and are purchased separately.
€1,438.00 €1,169.11
Buy & Deliver Available for Delivery
Buy & Collect Available for Collection
Recently Viewed

Ideal Logic 30He Combi Boiler & Flue


LOGIC COMBI IE


7Yr Warranty


Our Logic Combi IE range is one of the only boilers to receive Quiet Mark accreditation for its quiet operation. The Logic range was awarded the Queen’s Award for Enterprise 2013 and Good Housekeeping Reader Recommended Status in 2013, 2017 and 2018.


FEATURES & BENEFITS


  • 7 year parts and labour warranty*
  • Boiler frost protection
  • Easy to see pressure gauge
  • Low lift weight (starting from 29.2kg)
  • Easy to use fully backlit LCD display
  • Wide range of additional flueing options
  • Universal condensate connection
  • LPG conversion kit available for 24IE and 30IE boilers
  • Preformed copper tails and pre-wired mains lead
  • Compatible with a range of additional controls
























































































































































  C24IE C30IE C35IE
Size
Height (mm) 700 700 700
Width
(mm)
395 395 395
Depth
(mm)
278 278 278
Weight
(packaged) kg
33.7 33.7 33.7
Max
installation weight kg
28.9 29 29.1
Performance
CH output (kW) min/max @ 70°C 4.8 - 24.2 6.1 - 24.2 7.1 - 24.2
CH
output (kW) min/max @ 40°C
5.1 - 25.6 6.4 - 25.6 7.5 - 25.6
DHW
output (kW) max
24.2 30.3 35.3
DHW flow
rating I/min. 35°C rise
9.9 12.4 14.5
SEAI
HARP (2005) %
91.1 91.1 91.1
NOx
classification
CLASS 6 CLASS 6 CLASS 6
Convertable
to LPG
Yes Yes No
Flues
Max horizontal flue 9m 8m 6m
Max
vertical flue
7.5m 7.5m 7.5m
Powered
vertical flue
22m 22m 22m
ERP
Efficiencies
Condensing boiler Yes Yes Yes
Seasonal
space heating efficiency class
A A A
Related
heat output Kw
24 24 24
Seasonal
space heating energy efficiency ŋs %
94 94 94
Sound
power level, indoors Lwa dB
48 46 44
Water
heating energy efficiency class
A A A
