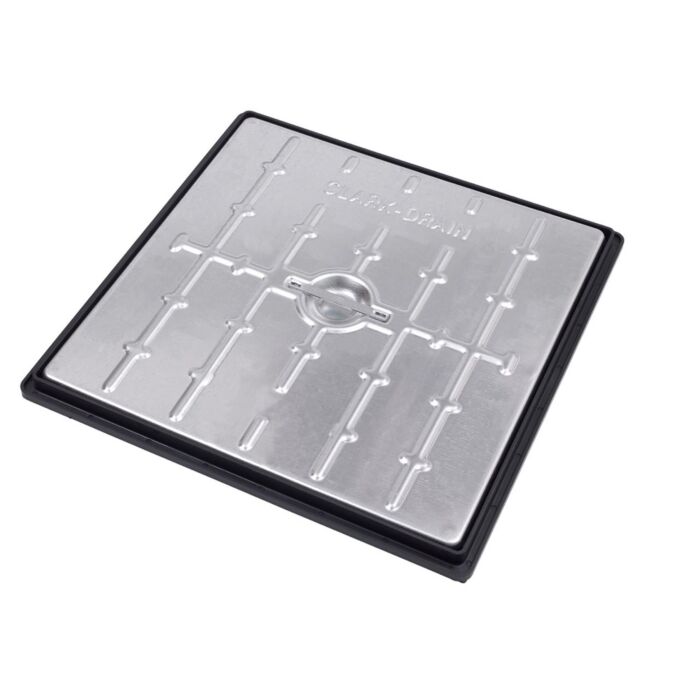

The Galvanised Manhole Cover and Frame (Product Code: 30PC5BG) is a durable and reliable solution designed for light-duty vehicle areas such as domestic driveways and private car parks. Featuring a solid-top, pressed galvanised steel cover within a high-strength polypropylene frame, this unit is engineered to withstand a Gross Plated Weight (GPW) of up to 5 tonnes.
It provides a secure, flush finish over inspection chambers, combining smart appearance with strength and longevity.
Key Features:
5 Tonne GPW Load Rating: Suitable for domestic driveways and areas with occasional light vehicle use (cars and small vans).
Galvanised Steel Construction: The cover is hot-dip galvanised to BS EN 1461 standards, providing superior resistance to corrosion and rust.
Durable Polypropylene Frame: The frame is made from robust PP material, adding stability and strength to the overall unit.
Solid Top Design: Offers a secure, plain seating cover that prevents debris from entering the manhole.
Integral Lifting Handles: Fitted with built-in lifting points for easy handling and access (lifting keys sold separately).
Technical Specifications:
Product Code: 30PC5BG
Clear Opening Dimensions: 450mm x 450mm
External Frame Dimensions: 513mm x 513mm x 30mm (Depth)
Material: Galvanised Steel Cover with Polypropylene Frame
Load Rating: 5 Tonne Gross Plated Weight (GPW)
Compliance: BS EN 1449:1991/EN 10025:2004 standards for steel and galvanising.
TJ’s Tip:
This cover is designed for very light traffic areas like domestic driveways, not public highways or heavy commercial use. For correct installation, the frame should be bedded securely in a strong mortar mix on a solid concrete base to ensure the load rating is achieved and maintained.
